PA6-CF

Technology:

PA6-CF is a top-tier material, offering exceptional mechanical properties with a nice, industrial look.

Stiff

Strong

High Temperature

Impact Resistant

The combination of Nylon 6 (PA6) and Carbon Fiber (CF) creates an incredibly high-performance material that delivers outstanding strength, impressive stiffness, and excellent impact resistance. It retains these qualities even under high temperatures or exposure to oils and greases, meeting the demands of many applications. Additionally, the surface finish does not resemble a typical FDM 3D print. Instead, it has a grainy, industrial texture, similar to what you might expect from a powder-based process like SLS or MJF. In short, if you’re looking for a top-tier material, PA6-CF is the one.

Ideal Size ≤

256 x 256 x 256 mm

(9.8 x 8.2 x 8.2 in)

Resolution

0.16 - 0.4 mm

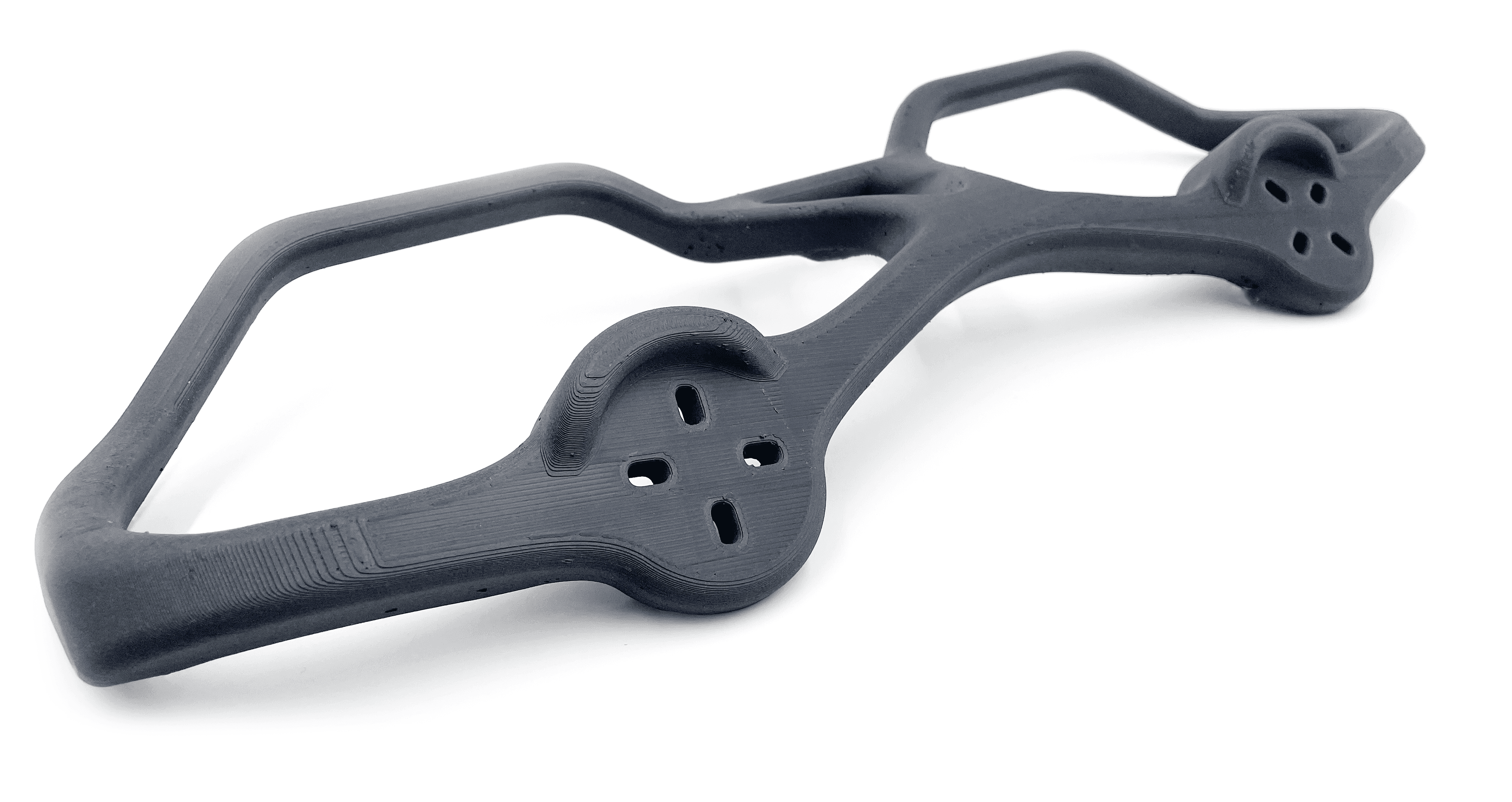

3d printed pa6-cf carbon fiber nylon large format black

Colors

Black

Economical

Max Size

Flexibility

Strength

Heat Resistance

Economical

Label

Max Size

Label

Flexibility

Label

Strength

Label

Heat Resistance

Label

3d printed pa6-cf carbon fiber nylon large format black
3d printed pa6-cf carbon fiber nylon large format black

Compare with other

FDM

materials

Material

Economical

Max Size

Flexibility

Strength

Heat Resistance

Specifications

Mechanical Properties

Density

1.17 (g/cm3 at 21.5˚C)

ISO 1183, GB/T 1033

Density

1.17 (g/cm3 at 21.5˚C)

ISO 1183, GB/T 1033

(XY) Tensile Modulus

7453 ± 656 (MPa)

ISO 527, GB/T 1040

(XY) Tensile Modulus

7453 ± 656 (MPa)

ISO 527, GB/T 1040

(Z) Tensile Modulus

4354 ± 206 (MPa)

ISO 527, GB/T 1040

(Z) Tensile Modulus

4354 ± 206 (MPa)

ISO 527, GB/T 1040

(XY) Tensile Strength

105.0 ± 5.0 (MPa)

ISO 527, GB/T 1040

(XY) Tensile Strength

105.0 ± 5.0 (MPa)

ISO 527, GB/T 1040

(Z) Tensile Strength

67.7 ± 4.7 (MPa)

ISO 527, GB/T 1040

(Z) Tensile Strength

67.7 ± 4.7 (MPa)

ISO 527, GB/T 1040

(XY) Elongation at Break

3.0 ± 0.4 (%)

ISO 527, GB/T 1040

(XY) Elongation at Break

3.0 ± 0.4 (%)

ISO 527, GB/T 1040

(Z) Elongation at Break

2.9 ± 0.7 (%)

ISO 527, GB/T 1040

(Z) Elongation at Break

2.9 ± 0.7 (%)

ISO 527, GB/T 1040

(XY) Bending Modulus

8339 ± 369 (MPa)

ISO 178, GB/T 9341

(XY) Bending Modulus

8339 ± 369 (MPa)

ISO 178, GB/T 9341

(XY) Bending Strength

169.0 ± 4.7 (MPa)

ISO 178, GB/T 9341

(XY) Bending Strength

169.0 ± 4.7 (MPa)

ISO 178, GB/T 9341

(XY) Charpy Impact Strength

13.34 ± 0.52 (kJ/m²)

ISO 179, GB/T 1043

(XY) Charpy Impact Strength

13.34 ± 0.52 (kJ/m²)

ISO 179, GB/T 1043

Thermal Properties

Glass Transition Temperature

56.6 (°C)

DSC, 10 °C/min

Glass Transition Temperature

56.6 (°C)

DSC, 10 °C/min

Melting Temperature

220 (˚C)

DSC, 10 °C/min

Melting Temperature

220 (˚C)

DSC, 10 °C/min

Crystallization Temperature

186.6 (˚C)

DSC, 10 °C/min

Crystallization Temperature

186.6 (˚C)

DSC, 10 °C/min

Heat Deflection Temperature (1.8MPa)

196 (˚C)

ISO 75 1.8 MPa

Heat Deflection Temperature (1.8MPa)

196 (˚C)

ISO 75 1.8 MPa

Heat Deflection Temperature (0.45MPa)

215 (˚C)

ISO 75 0.45 MPa

Heat Deflection Temperature (0.45MPa)

215 (˚C)

ISO 75 0.45 MPa

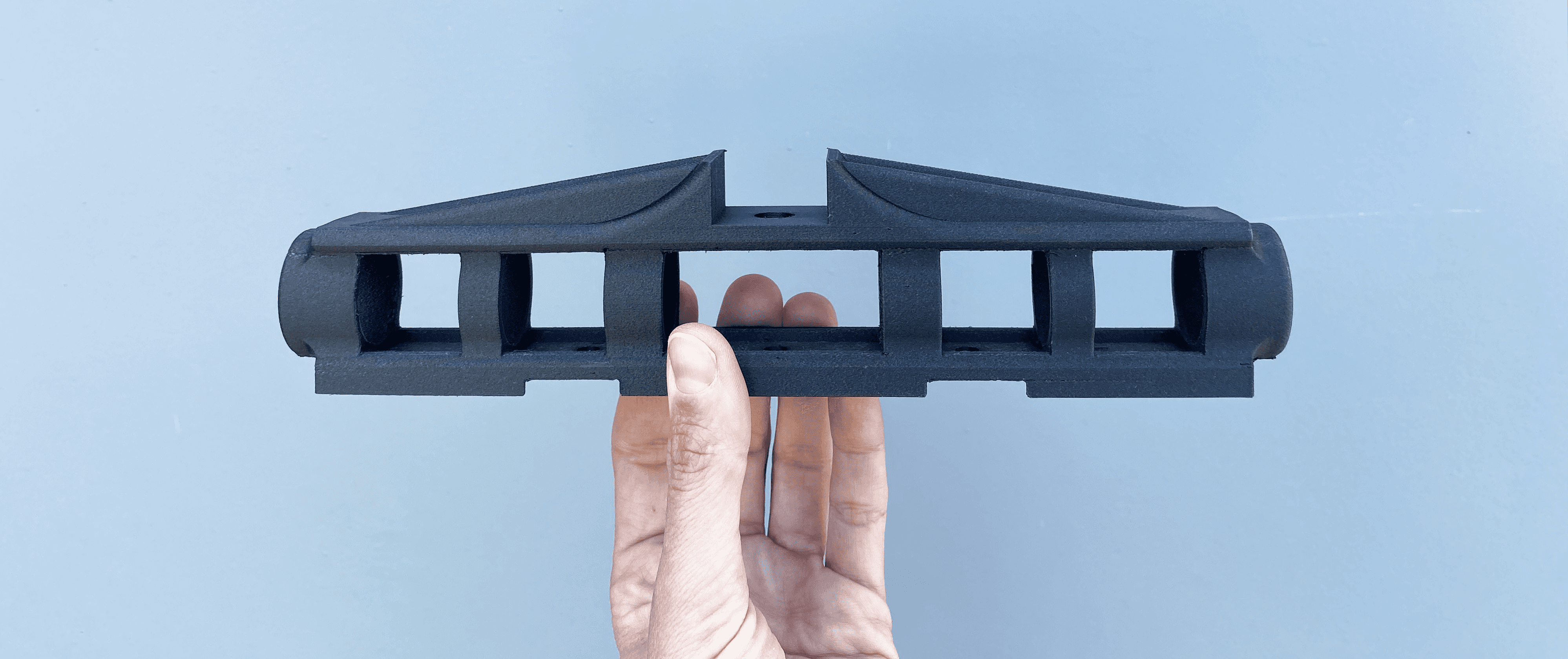

3d printed pa6-cf carbon fiber nylon stabilizer mount black
