PET-CF17
Technology:

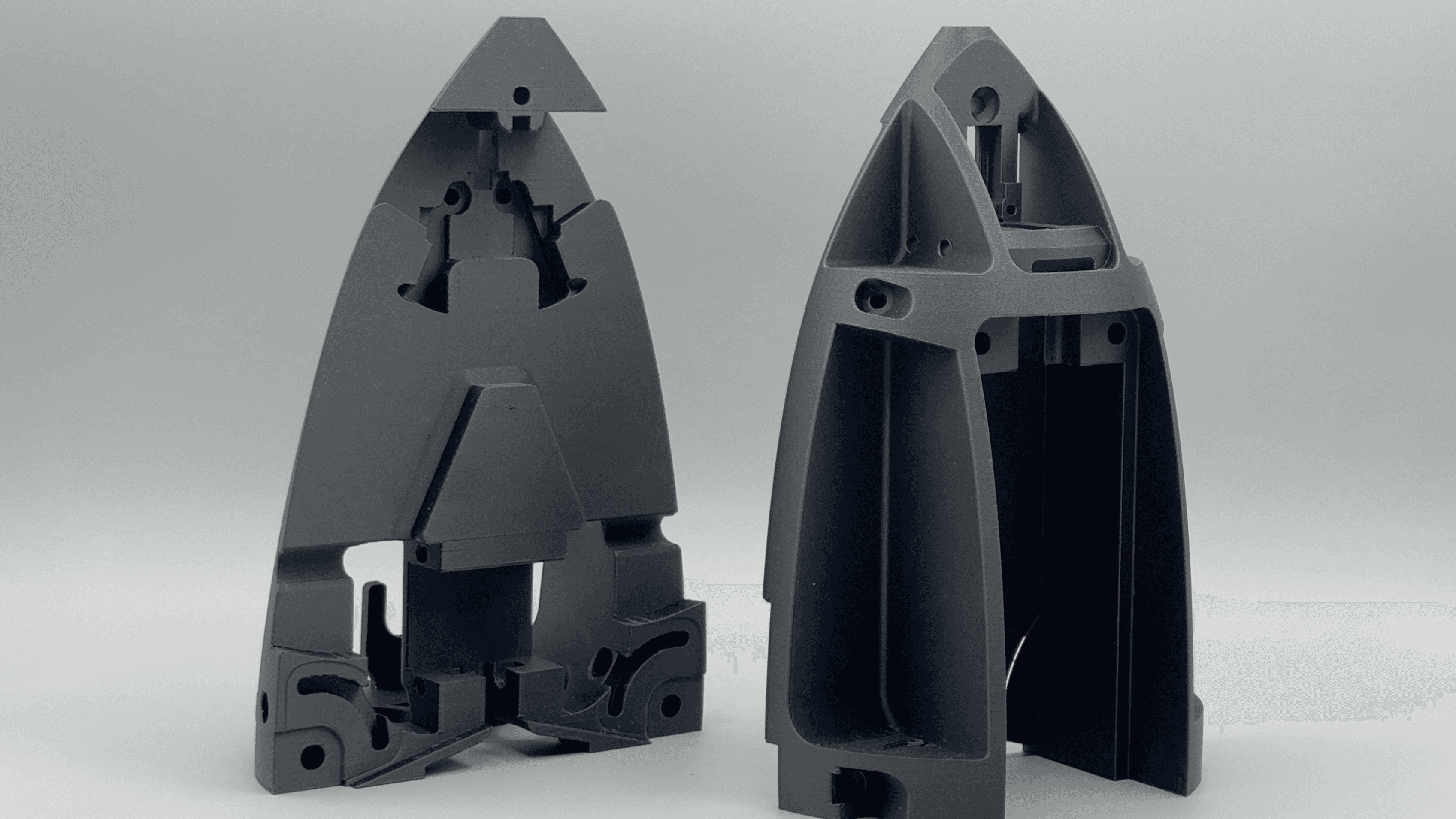

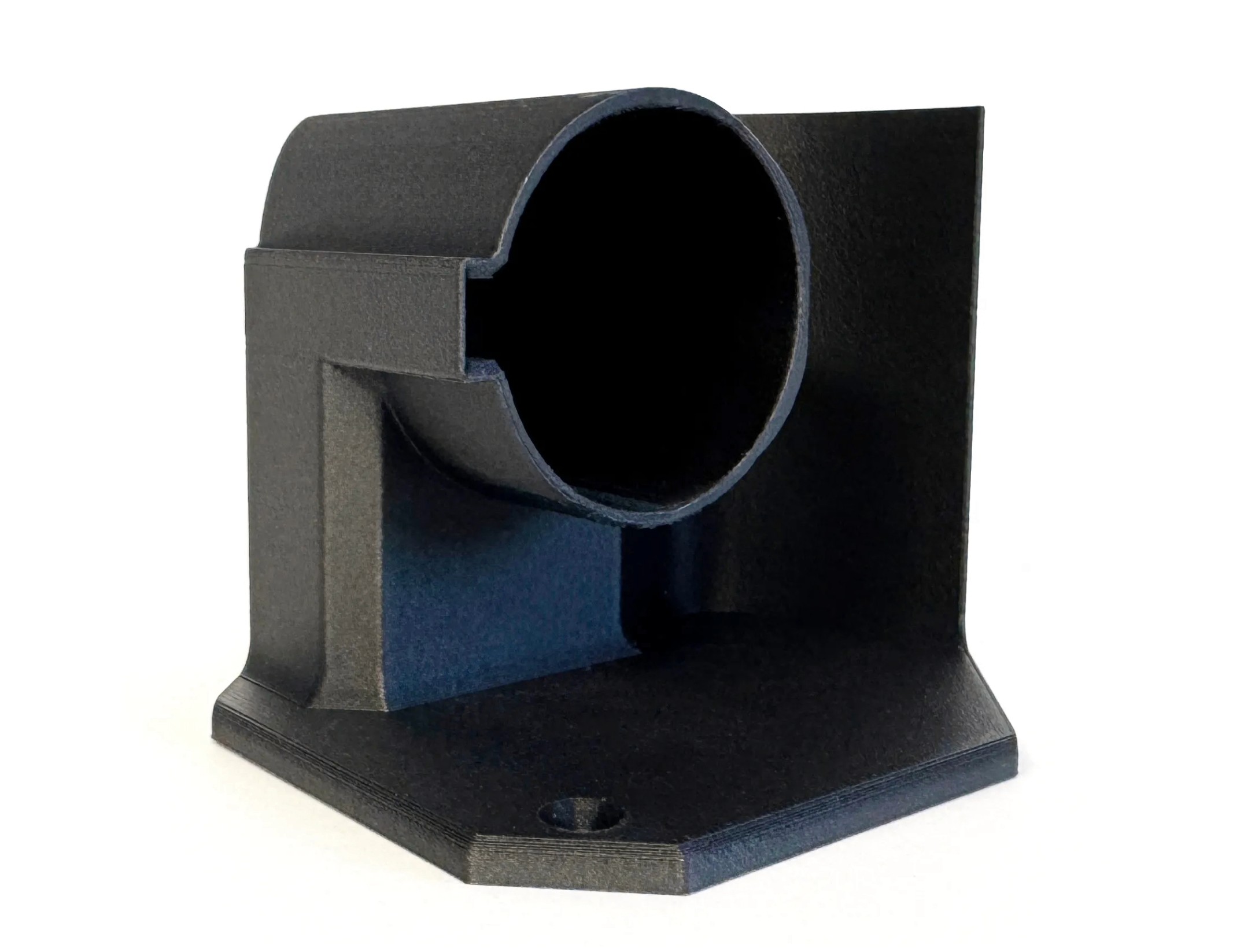

Combining carbon fiber with PET gives an industrial look with added strength and stiffness.
Why do people love PET combined with carbon fiber? First, there’s the aesthetic look of the material. The chopped carbon fiber gives you an industrial look that doesn’t feel 3D printed. Second, the carbon fiber adds strength and stiffness, which is significant considering PET is already a strong material. Finally, there’s accuracy. PET doesn’t like to shrink or warp, and the carbon fiber makes this even more true, allowing for very accurate parts, even at large sizes.
Ideal Size ≤
500 x 500 x 500 mm
(20.7 x 20.7 x 20.7 in)
Resolution
0.16 - 0.4 mm
Colors
Black
Economical
Max Size
Flexibility
Strength
Heat Resistance
Economical
Label
Max Size
Label
Flexibility
Label
Strength
Label
Heat Resistance
Label
Compare with other
FDM
materials
Material
Economical
Max Size
Flexibility
Strength
Heat Resistance
Specifications
Mechanical Properties
Density
1.34 g/cm3 at 23°C
ISO1183, GB/T1033
Density
1.34 g/cm3 at 23°C
ISO1183, GB/T1033
(XY) Tensile Modulus
5481.0 ± 223.7 MPa
ISO 527, GB/T 1040
(XY) Tensile Modulus
5481.0 ± 223.7 MPa
ISO 527, GB/T 1040
(Z) Tensile Modulus
3558.8 ± 260.4 MPa
ISO 527, GB/T 1040
(Z) Tensile Modulus
3558.8 ± 260.4 MPa
ISO 527, GB/T 1040
(XY) Tensile Strength
65.9 ± 1.0 MPa
ISO 527, GB/T 1040
(XY) Tensile Strength
65.9 ± 1.0 MPa
ISO 527, GB/T 1040
(Z) Tensile Strength
27.9 ± 1.3 MPa
ISO 527, GB/T 1040
(Z) Tensile Strength
27.9 ± 1.3 MPa
ISO 527, GB/T 1040
(XY) Elongation at Break
2.4 ± 0.5%
ISO 527, GB/T 1040
(XY) Elongation at Break
2.4 ± 0.5%
ISO 527, GB/T 1040
(Z) Elongation at Break
0.8 ± 0.1%
ISO 527, GB/T 1040
(Z) Elongation at Break
0.8 ± 0.1%
ISO 527, GB/T 1040
(XY) Bending Modulus
4744.4± 136.3 MPa
ISO 178, GB/T 9341
(XY) Bending Modulus
4744.4± 136.3 MPa
ISO 178, GB/T 9341
(XY) Bending Strength
109.3 ± 2.0 MPa
ISO 178, GB/T 9341
(XY) Bending Strength
109.3 ± 2.0 MPa
ISO 178, GB/T 9341
(XY) Charpy Impact Strength
5.1 ± 0.2 kJ/m2
ISO 179, GB/T 1043
(XY) Charpy Impact Strength
5.1 ± 0.2 kJ/m2
ISO 179, GB/T 1043
Thermal Properties
Glass Transition Temperature
79.3 °C
DSC, 10°C/min
Glass Transition Temperature
79.3 °C
DSC, 10°C/min
Melting Temperature
241.3 °C
DSC, 10°C/min
Melting Temperature
241.3 °C
DSC, 10°C/min
Decomposition Temperature
434.0 °C
TGA, 20°C/min
Decomposition Temperature
434.0 °C
TGA, 20°C/min
Crystallization Temperature
202.9 °C
DSC, 10°C/min
Crystallization Temperature
202.9 °C
DSC, 10°C/min
Vicat Softening Temperature
238.4 °C
ISO 306, GB/T 1633
Vicat Softening Temperature
238.4 °C
ISO 306, GB/T 1633
Heat Deflection Temperature (1.8MPa)
105 °C
ISO 75 1.8MPa
Heat Deflection Temperature (1.8MPa)
105 °C
ISO 75 1.8MPa
Heat Deflection Temperature (0.45MPa)
147.5 °C
ISO 75 0.45MPa
Heat Deflection Temperature (0.45MPa)
147.5 °C
ISO 75 0.45MPa
