3D Printed Bones
from CT Scans
3D Printed Bones
from CT Scans
3D Printed Bones
from CT Scans
CT scans contain 3D information.
We make it tangible.
CT scans contain 3D information.
We make it tangible.
A CT scan is more than a collection of images. It’s a volumetric dataset made up of hundreds or thousands of cross-sectional slices, delivered in a standard format known as DICOM. When those slices are viewed together, they define the full three-dimensional shape of a physical object, such as a bone. This can then be prepared for 3D printing.
A CT scan is more than a collection of images. It’s a volumetric dataset made up of hundreds or thousands of cross-sectional slices, delivered in a standard format known as DICOM. When those slices are viewed together, they define the full three-dimensional shape of a physical object, such as a bone. This can then be prepared for 3D printing.
dicom@incept3d.com
dicom@incept3d.com
Step 1: CT Data (DICOM)
We begin with a DICOM dataset from a CT scan, which contains the full volumetric information needed to reconstruct anatomy.
We begin with a DICOM dataset from a CT scan, which contains the full volumetric information needed to reconstruct anatomy.

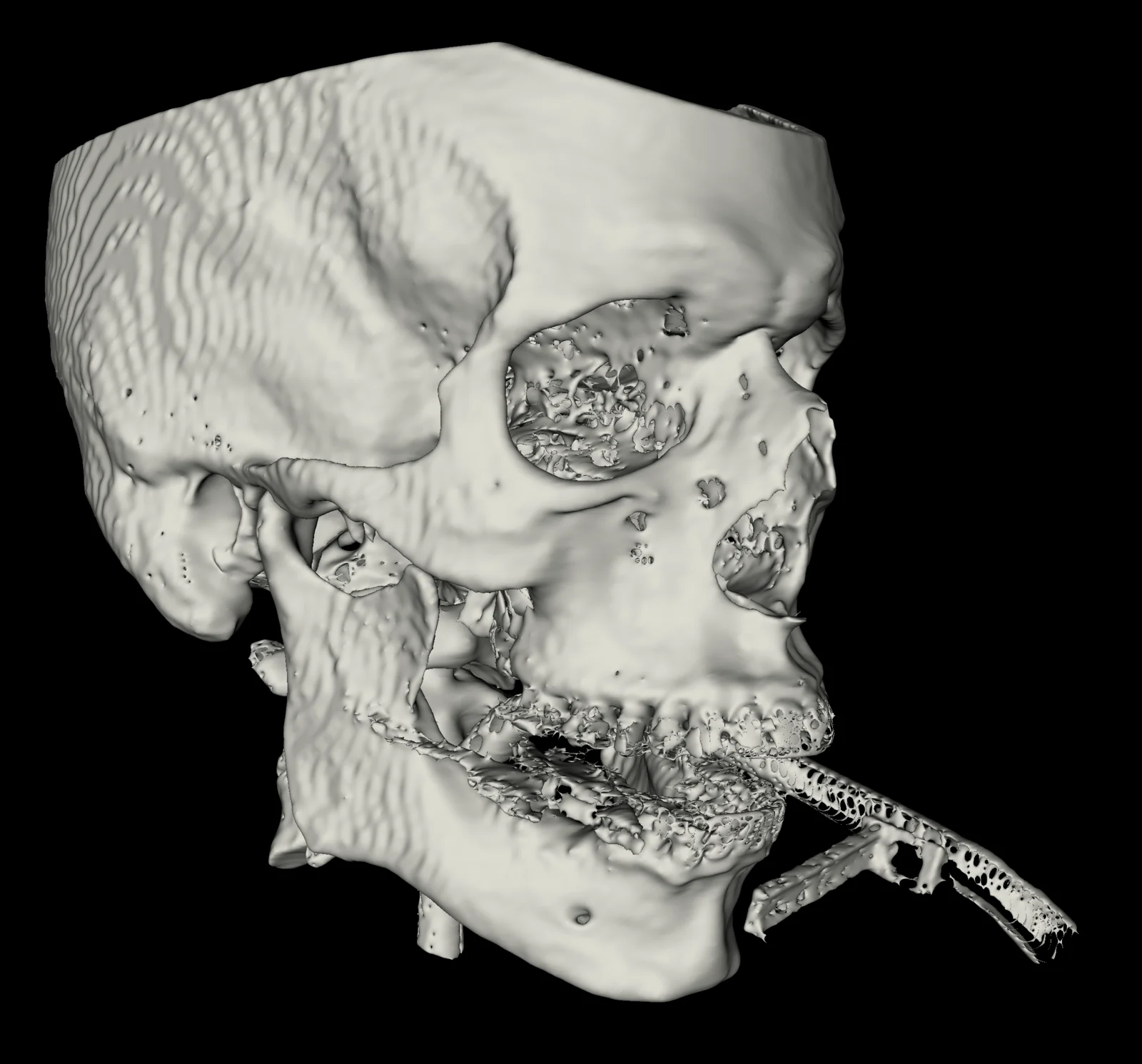

Step 2: Segmentation
Relevant structures, such as bones, are isolated from surrounding tissue.
Relevant structures, such as bones, are isolated from surrounding tissue.
Step 3: Model Preparation
The resulting geometry is cleaned, refined, and prepared for manufacturing while preserving anatomical accuracy.
The resulting geometry is cleaned, refined, and prepared for manufacturing while preserving anatomical accuracy.

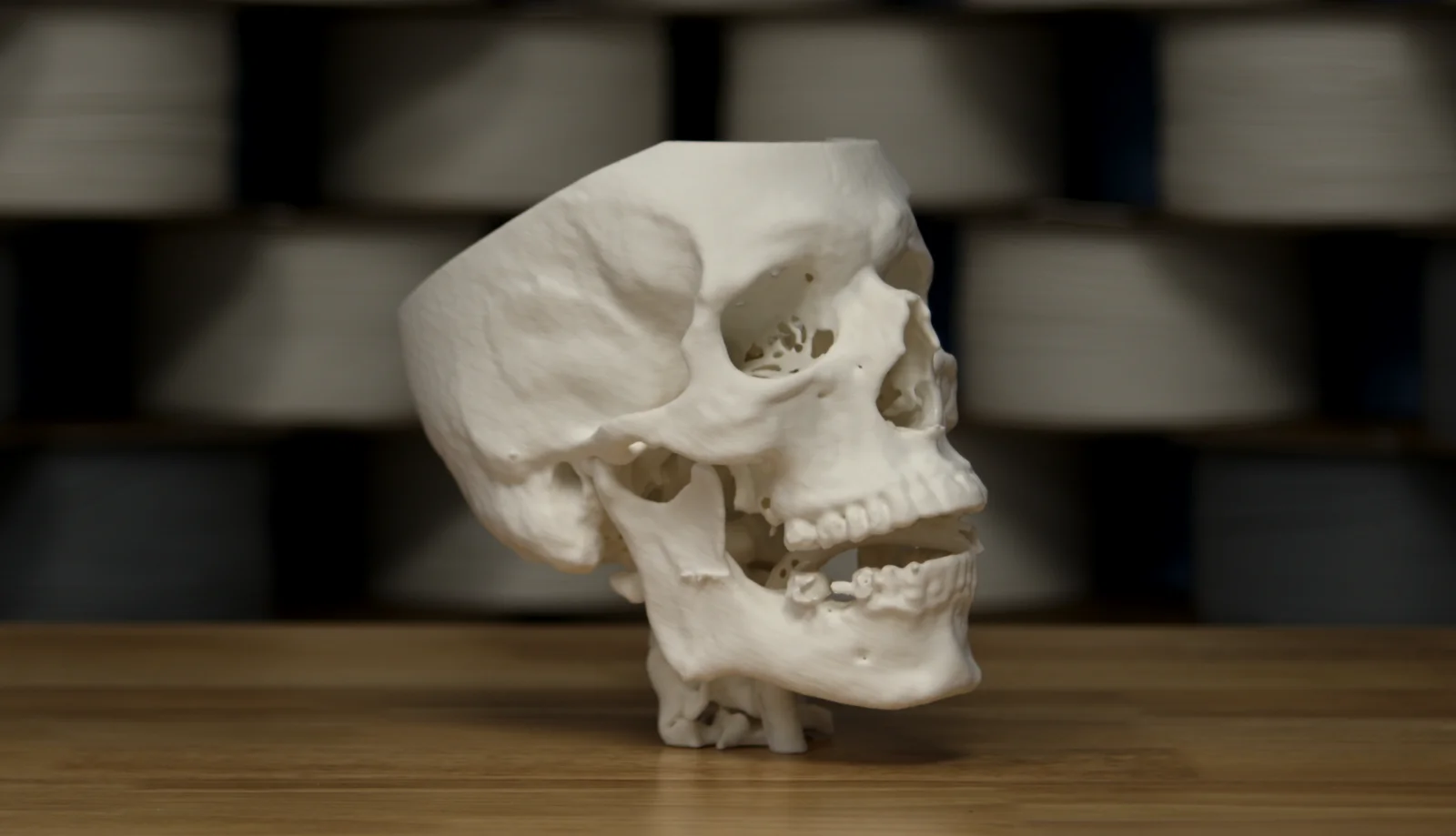

Step 4: 3D Printing
The final model is produced using high-resolution 3D printing, creating a precise physical representation of the original scan.
The final model is produced using high-resolution 3D printing, creating a precise physical representation of the original scan.
Common Applications

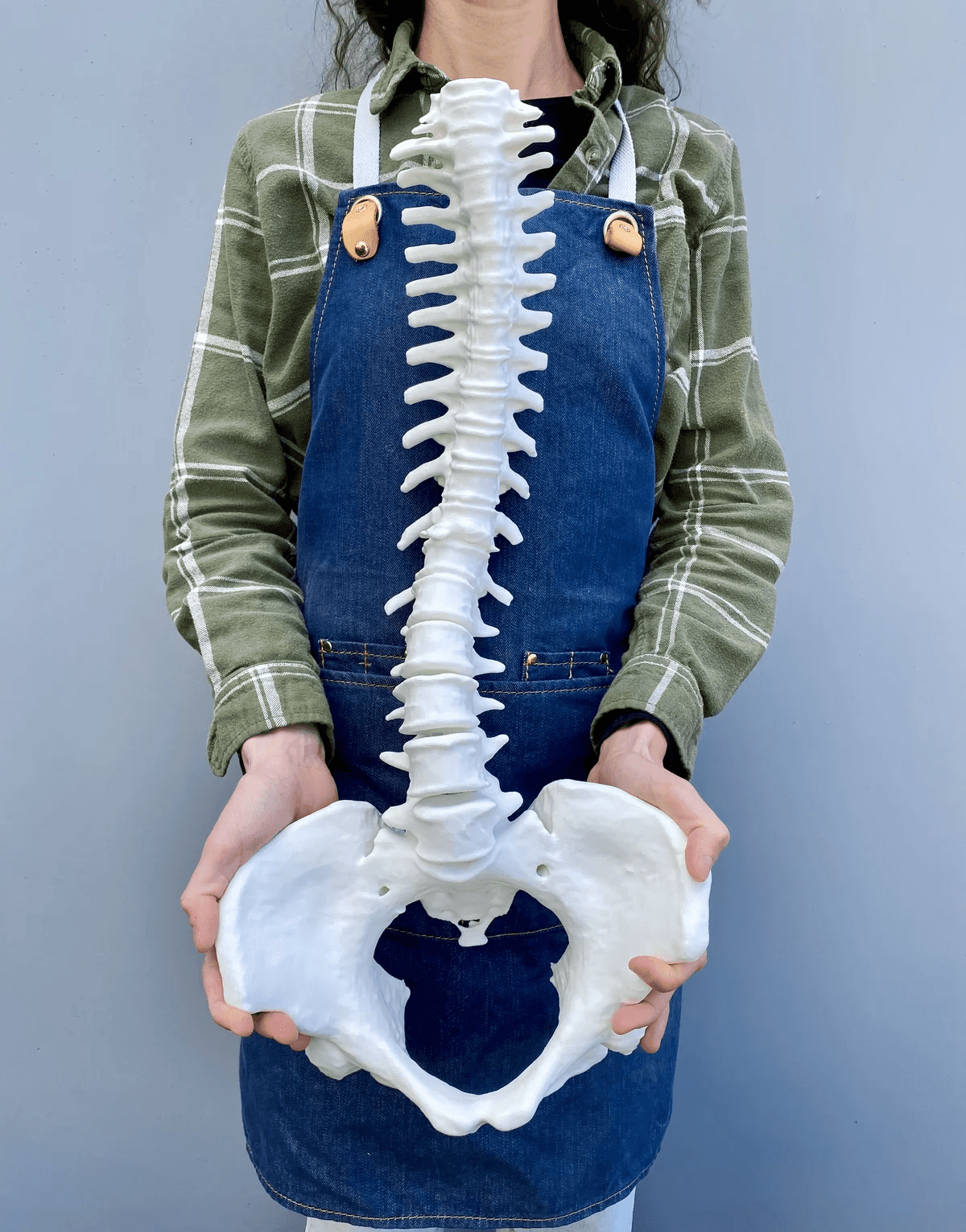

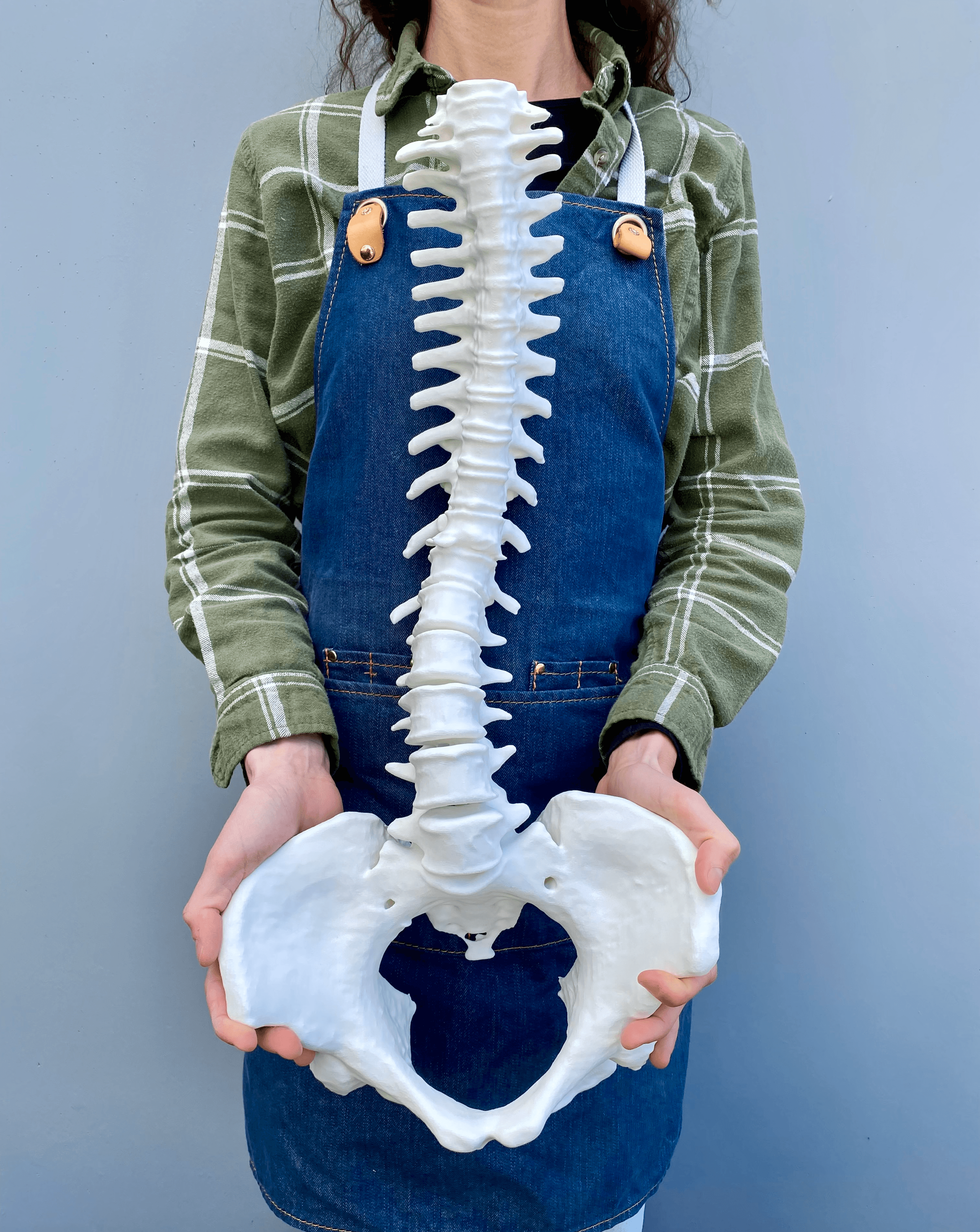

Education & Training
Anatomical models used for teaching, demonstration, and hands-on learning.
Anatomical models used for teaching, demonstration, and hands-on learning.

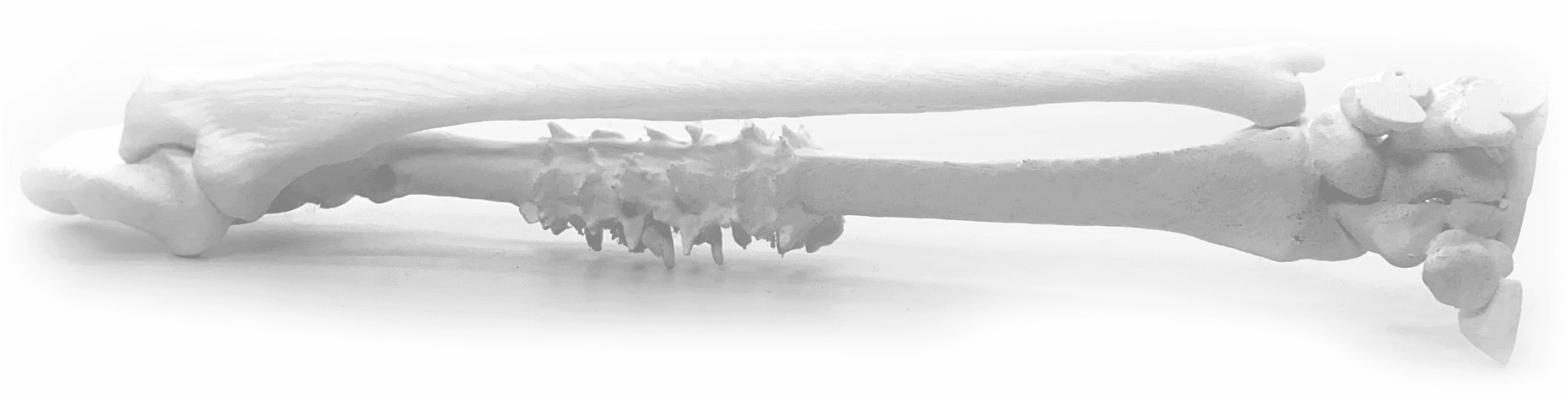

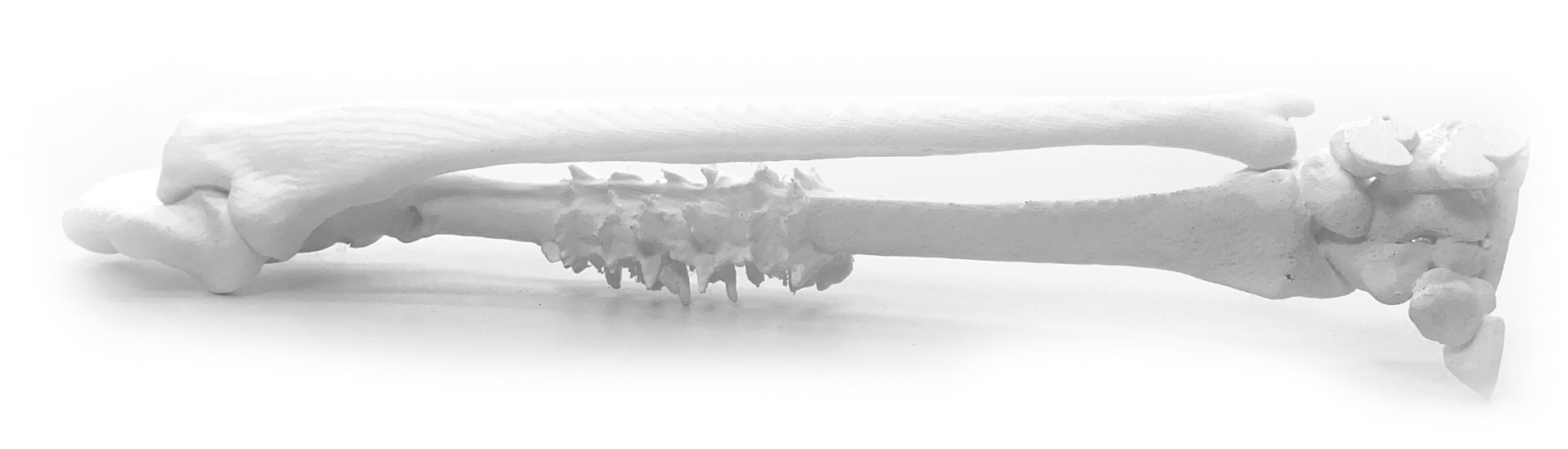

Surgical Review & Planning
Patient-specific models that help surgeons visualize anatomy before a risky procedure.
Patient-specific models that help surgeons visualize anatomy before a risky procedure.
Legal & Medical Illustration
Physical representations used to clearly communicate injuries or conditions.
Physical representations used to clearly communicate injuries or conditions.
Have a CT Scan You’d Like to Work With?
If you have a CT scan available as a DICOM dataset, we’re happy to talk through your project and discuss what’s possible.
Email us at dicom@incept3d.com, or upload files through our portal.
If you have a CT scan available as a DICOM dataset, we’re happy to talk through your project and discuss what’s possible.
Email us at dicom@incept3d.com, or upload files through our portal.
