Test Bench Fixture for Custom Printheads
We designed and built this fixture to assist in streamlining upgrade processes now and in the future.
We’re always 3D printing jigs and fixtures for customers, and we practice this in-house as well.

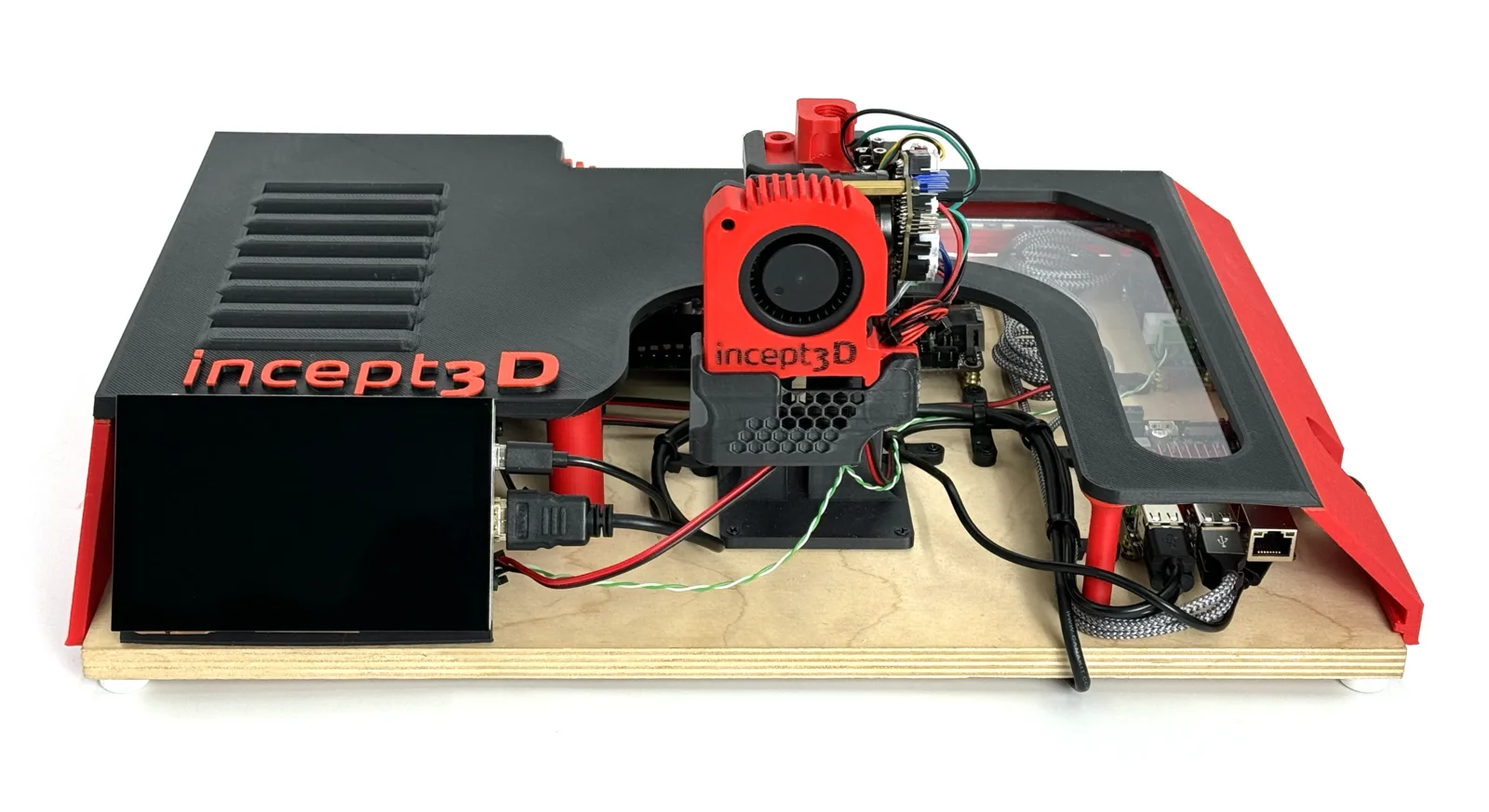

Meet our cute little test bench, designed for our custom in-house printheads.
The test bench is essentially a 3D printer stripped of its axis motors. It includes a power supply unit, motherboard, single board computer, USB to CAN bus, screen, and a fixture to hold the printhead—all connected with neatly organized wiring.
This device allows us to meticulously inspect each printhead for any issues and ensure everything is properly calibrated. It makes preventative maintenance effortless and keeps a supply of extra printheads ready at all times.
Daily 3D printing of large parts can be stressful, but our test bench significantly reduces that stress. What sort of jigs or fixtures could save you time and automate your operations? We would love to design those for you or help produce them in our factory. Book a meeting here.
